SUN2000-60KTL-M3

The SUN2000-60KTL-M3 is a transformerless, high-efficiency (up to 98.9%) 60 kW smart string inverter designed for utility-scale photovoltaic systems, featuring six MPPT trackers, IP65 protection, and integrated residual current monitoring (Huawei, documents 2, 4, 6).

Images

SUN2000-12/15/17/20/25K-MB0
img_tag

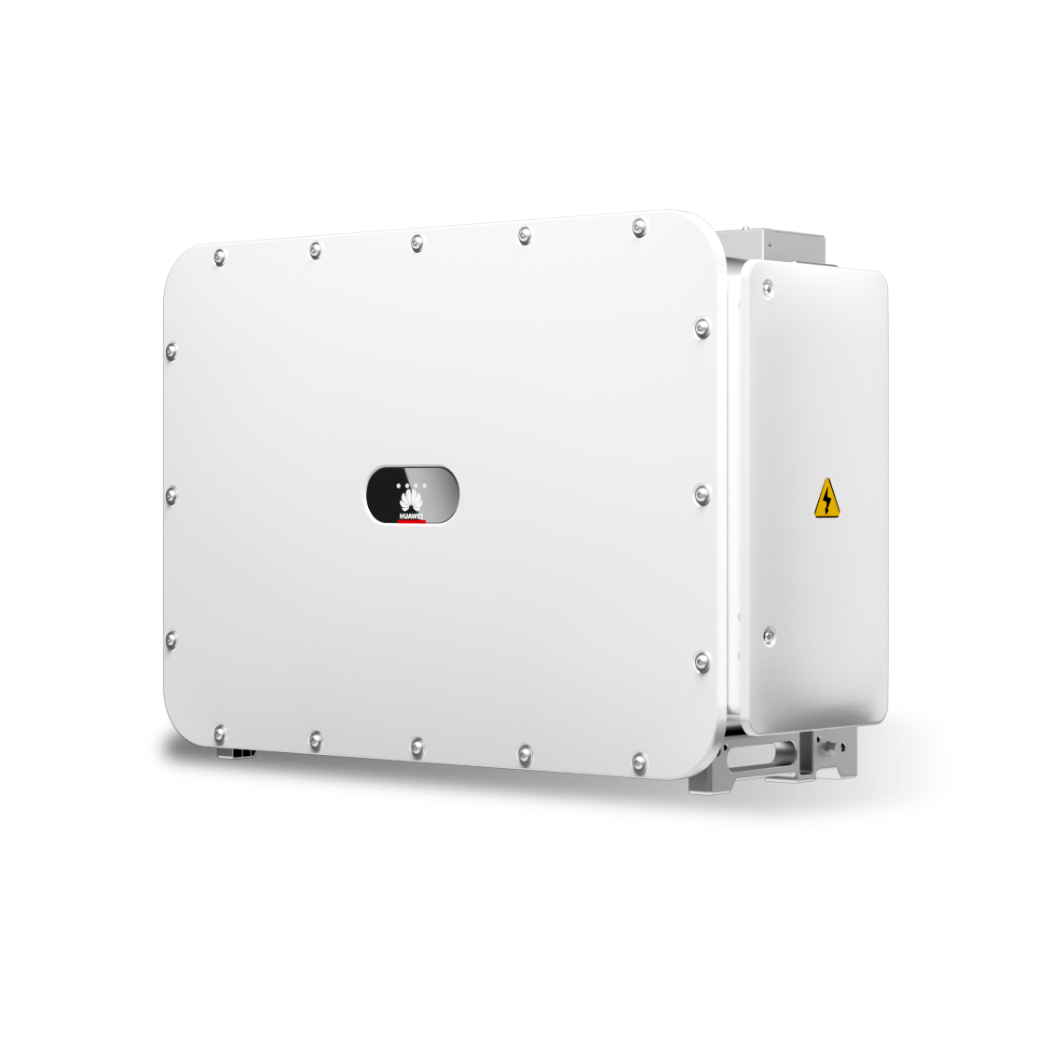

SUN2000-150K-MG0
img_tag

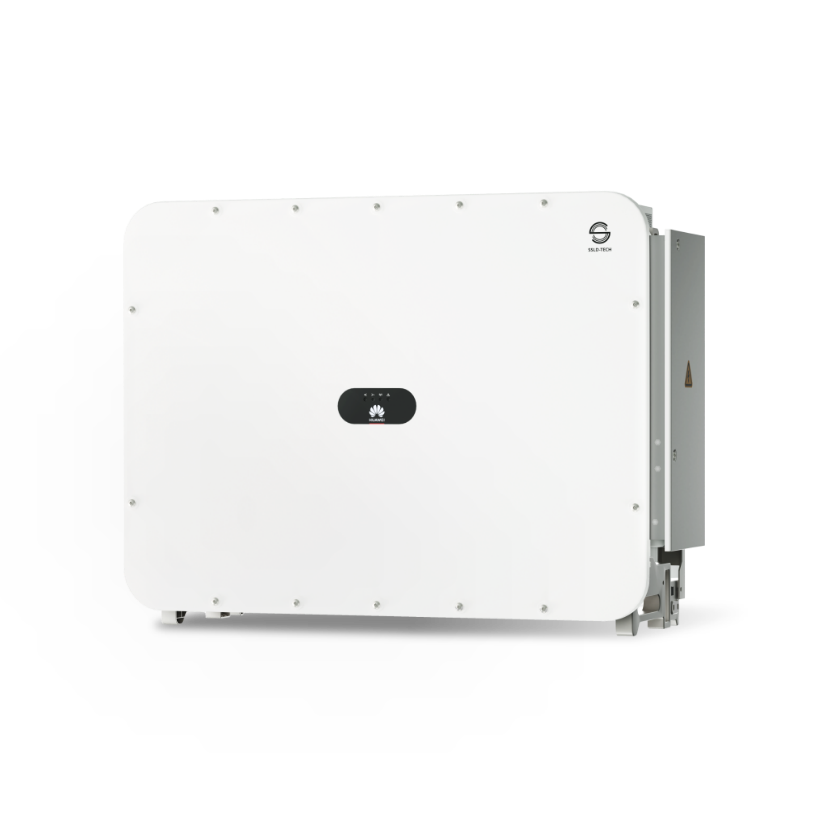

SUN2000-506KTL-H1/H3
img_tag

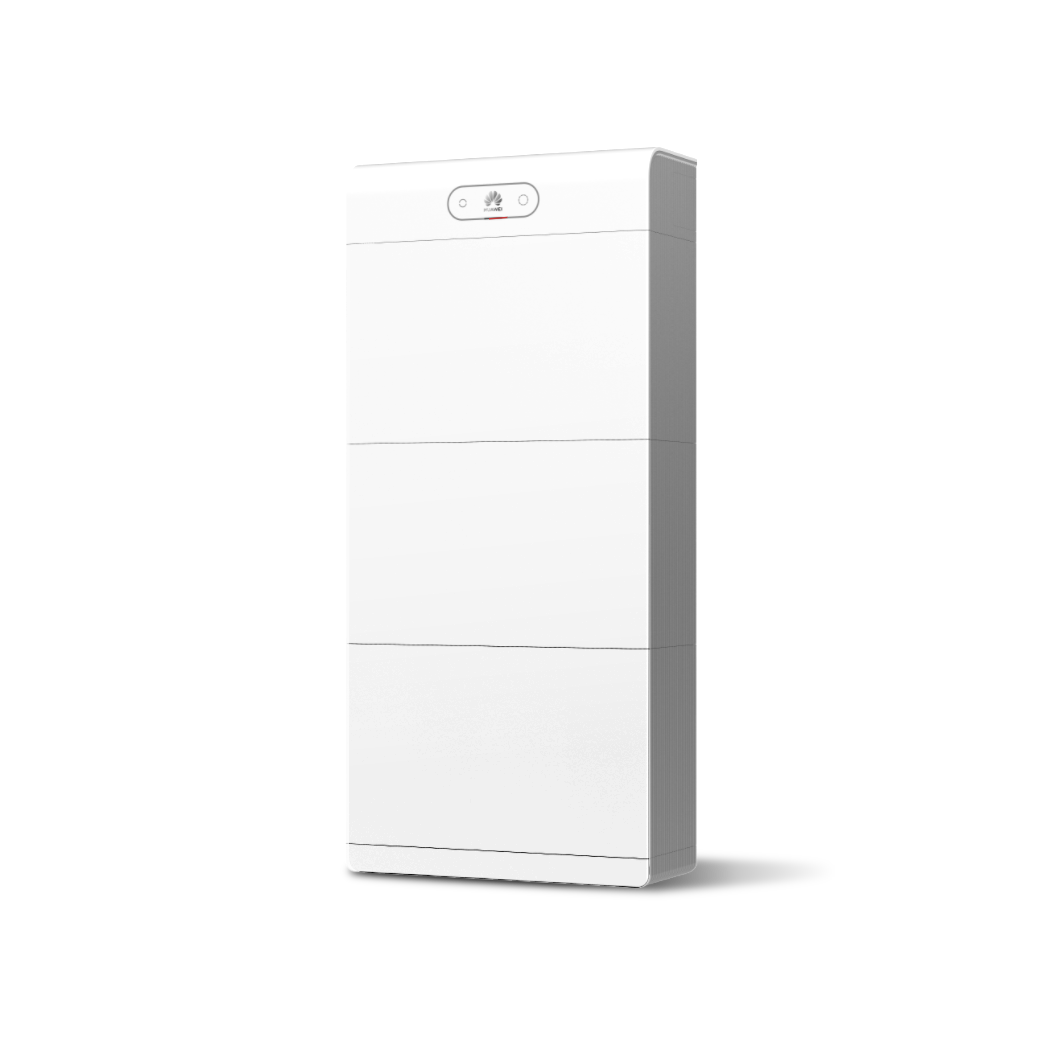

LUNA2000-5/7/10/12/14/15/17/19/21-S1
img_tag
SUN2000-60KTL-M3
img_tag

Pros and cons

Pros

Strengths called out by generated product content.

  • High inverter availability up to 99.996%
  • Maximum efficiency of 98.7%
  • Suitable for indoor and outdoor installation
  • Sturdy construction capable of surviving severe weather
  • Multiple MPPT trackers for flexible configuration
  • Supports smart string management and diagnosis
  • Fuse-free design and optional AFCI protection

Cons

Tradeoffs and constraints to review before choosing.

  • Generally, grid-tie inverters cannot run off-grid
  • Some users suggest avoiding Growatt due to reliability concerns
  • Potential obsolescence issues when upgrading batteries or system components
  • Limited information on off-grid capabilities

Notes

Context that does not fit neatly as a pro or con.

  • Discussion includes various inverter brands and models with different features
  • Some comments compare string inverters to microinverters and hybrid options
  • No specific user feedback on the product's performance or installation experience

Electrical Specifications

Max Output Power
60,000 W1
Max Input Voltage
1,100 V2
MPPT Tracking
6 count1

Performance

Efficiency
98.9 %1

Physical Characteristics

Weight
74 kg1
IP Rating
IP651

Connectivity

Communication Interfaces
APP, Bluetooth/WLAN, LED Indicators, MBUS, RS485, USB1

Physical Dimensions

Physical Length
107.5 cm1
Physical Width
55.5 cm1
Physical Height
30 cm1
