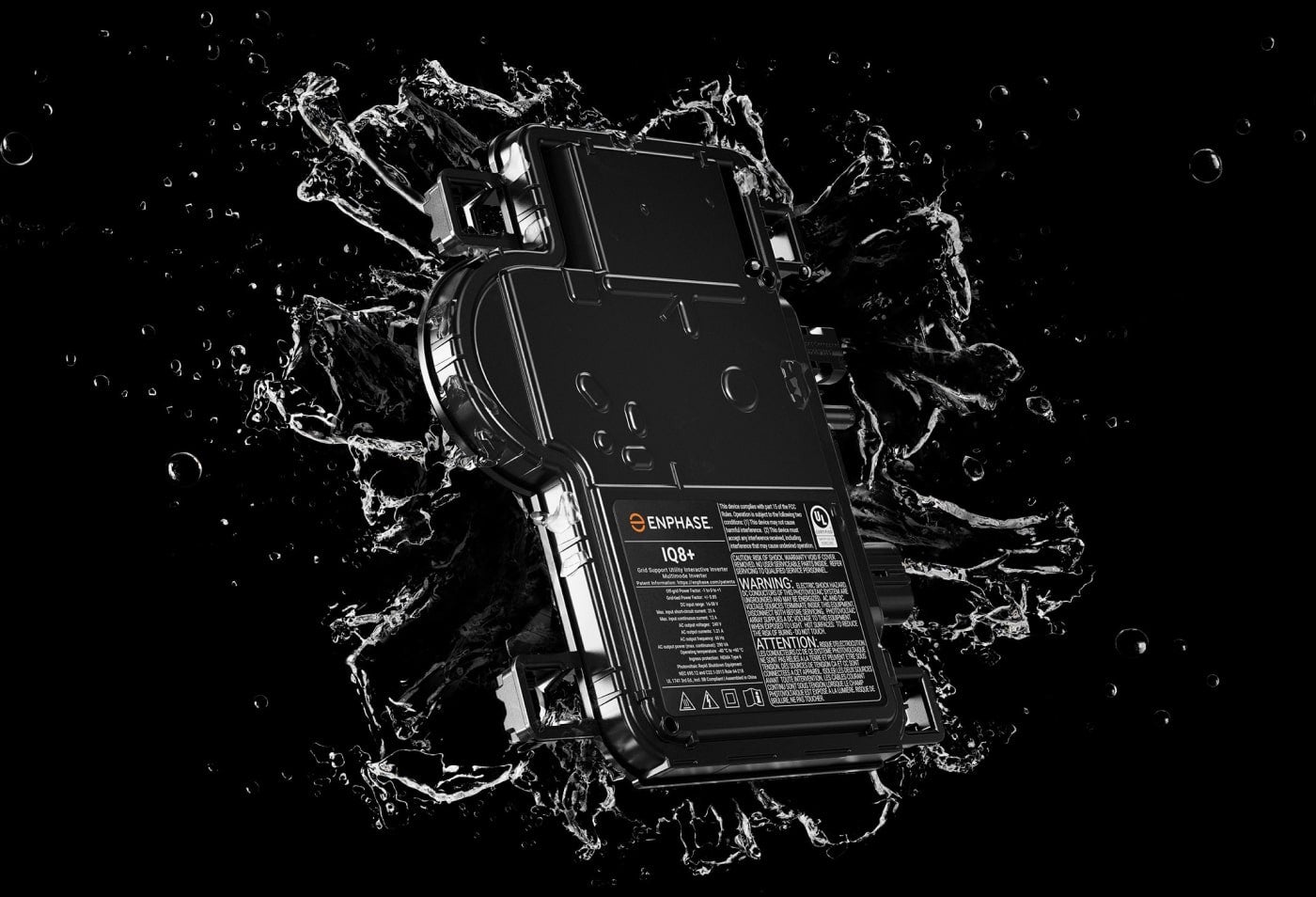

Enphase IQ Microinverter

The Enphase IQ Microinverter series includes models like IQ8, IQ7, IQ6, and IQ9, featuring advanced GaN technology for higher efficiency, cooler operation, and reliable performance. The IQ8 series introduces microgrid-forming, software-defined microinverters capable of grid-tied or off-grid operation, supporting split-phase power conversion and high compatibility with high-power PV modules. These microinverters are UL-listed, designed for easy installation, and offer industry-leading warranties up to 25 years, integrating seamlessly with Enphase energy systems such as IQ Battery, IQ Gateway, and monitoring software (manufacturer sources).

Images

Enphase IQ Microinverter
img_tag
Enphase IQ Microinverter
img_tag

Pros and cons

Pros

Strengths called out by generated product content.

  • Distributed load reduces system failure risk compared to central inverters
  • Microinverters allow panel-level shutdown for module safety
  • Enphase IQ8 series offers rapid load-following and seamless operation in on-grid and off-grid modes
  • Long warranty period of 25 years for IQ8 microinverters
  • Monitoring system provides local and independent troubleshooting

Cons

Tradeoffs and constraints to review before choosing.

  • Failure of a microinverter results in only one panel being affected, but may require roof access for replacement
  • Microinverters can have higher failure rates in some environments, especially in hotter climates
  • Microinverters may be less reliable than string inverters according to some installers' experience
  • Installation of microinverters can be more complex and potentially more expensive than string inverters
  • Some users report that microinverters are less suitable for systems with predictable shading, where string inverters are preferred

Notes

Context that does not fit neatly as a pro or con.

  • Some discussions mention that microinverters can clip power at high wattages, but the impact is minimal

Electrical Specifications

Max Output Power
245 W1
Max Input Voltage
60 V1
MPPT Tracking
1 count1
Input Voltage Range
27–37 V1

Power Ratings

Rated Power
245 VA2
Max Apparent Output Power
245 VA2

Performance

Efficiency
97 %2
Operating Temperature Range
–40°C to 60°C (–40°F to 140°F)1

Electrical Output

Rated Grid Voltage
240 V2
Rated Grid Frequency
60 Hz2
Operation Phase
split-phase3
Power Factor
1 leading3
AC Connection
MC42

Physical Characteristics

Weight
1.08 kg4
IP Rating
IP664
Physical Dimensions
212 mm (8.3”) x 175 mm (6.9”) x 30.2 mm (1.2”)2

Connectivity

Communication Interfaces
Power line communication (PLC)4

Efficiency

Efficiency Max
973
Mppt Efficiency
99.5 %4
Maximum Efficiency
97.53

Features

Features
compliant with latest grid support standards, Configurable to support a wide range of grid profiles, IEEE 1547:2018, Lightweight and compact, Meets CA Rule 21 (UL 1741-SA) and IEEE 1547:2018, Microgrid-forming, Plug-and-play connectors, power line communication, Power line communication (PLC), Produce power even when grid is down, Remote automatic updates, software-defined, split-phase power conversion, UL 1741-SA4

Protection Features

DC Reverse Polarity Protection
Yes3
Short Circuit Protection
Yes2
Output Over Current Protection
Yes2
Output Over Voltage Protection
Yes2
Insulation Resistance Monitoring
Yes2
Residual Current Detection
Yes2
Surge Protection
Yes2
Grid Monitoring
Yes2
Islanding Protection
Yes2
Temperature Protection
Yes2
Protection Features Ground Fault Isolation Detection
Yes3

Physical Dimensions

Physical Length
21.2 cm2
Physical Width
17.5 cm2
Physical Height
21.2 cm2
Dimensions Length
21.2 cm3
Dimensions Width
17.5 cm3
Dimensions Height
3.02 cm3

Environmental

Cooling Concept
natural convection2

Communication

Monitoring
Enphase Enlighten, MyEnlighten5

General

Topology
split-phase2
Warranty
25 years2
Designed Lifetime
25 years2
